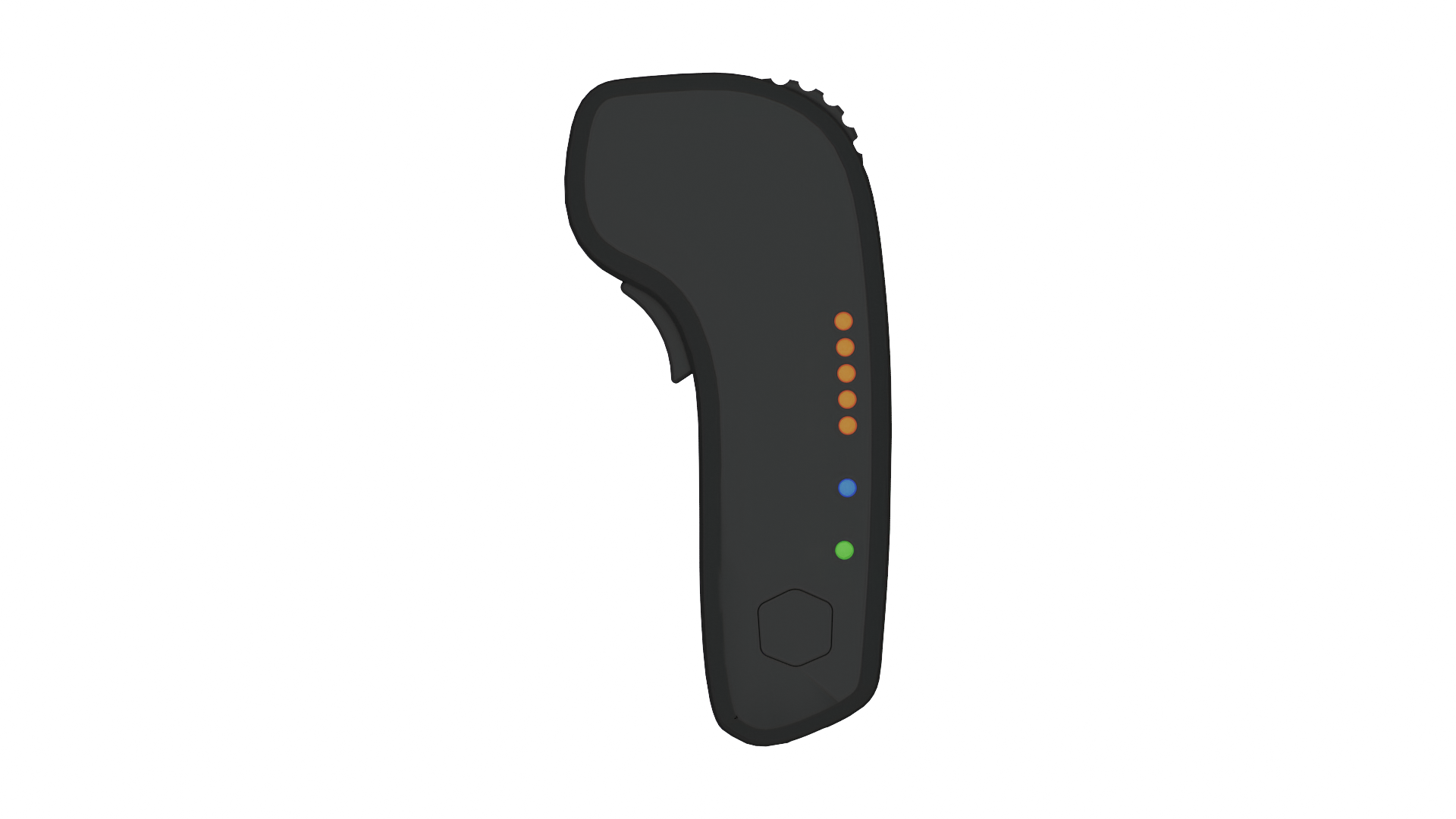

Hypershell
For your V1, V2, V3, and V4 Boosted remotes
Recommended Materials
Layer height: 0.2mm
Extrusion width: 0.4mm, forced
Infill percentage: 40%-100%
Infill type: gyroid, honeycomb, triangle, cubic, rectilinear
Wall count: 4
Solid top/bottom layers: 5
Supports: NONE
Orientation: Use file orientation
Acrylonitrile Butadiene Styrene (ABS)
Acrylonitrile Styrene Acrylate (ASA)
Print files have no expressed or implied warranty. Any parts printed and/or modified by end users is done at the sole discretion of the user.
Serious injury may occur if inadequate materials are used, such as Polylactic Acid (PLA) due to poor dimensional stability in elevated ambient temperatures.
Warning
1x Top Hypershell Piece
1x Bottom Hypershell Piece
1x Hypershell Trigger
1x Hypershell Wheel Return Lever
1x Hypershell Control Wheel
1x Hypershell, V3, V2, or V1 Power Button
(CIRCULAR KICKSTARTER POWER BUTTON IS NOT COMPATIBLE)
Plastic Parts Needed
Additional Hardware Needed
9x M3 × 10mm Socket Bolts
7x M3 × 5mm x 4mm Heat Set Inserts
2x Bronze 3mm x 6mm x 4mm Sleeve Bearings
1x Stainless Steel 3mm x 16mm Steel Rod
7x LED Diffuser (Hole opening: 3mm)
1x Wheel Return Spring
Assembly Tools Needed
2.5mm Hex Driver
